THE BEST CMM FOR EFFICIENT WORKPIECE INSPECTION
The Tornado series is the latest generation of precision high-speed CMM (coordinate measuring machine) from the company Leader Metrology. It combines single-point scanning and analog scanning in one high-performance measuring machine which can be equipped with a contact and contactless probe system. The Y-axis is made from high-efficient granite and the X-axis and Z-axis are made from aviation-quality aluminum alloy, thus achieving the same character in terms of temperature and rigidity. The control system is from Renishaw and, as a high-speed servo drive measuring and control system, is characterized by an extremely high level of reliability and safety. This system is supporting analog sensing probes as well as other sensing systems such as touch-trigger sensing systems, contactless sensing systems, etc. The Renishaw probe system with which this CMM is equipped will provide you the excellent scanning accuracy and, last but not least, the best compactness and versatility of the scanning system in the world.

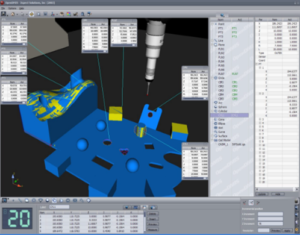

All of this is covered by the RATIONAL – DMIS software, which ranks among the top of its kind. With this software, you can easily create inspection programs, because the entire software is built very intuitively. RATIONAL-DMIS is also supporting the I ++ protocol, so you have the opportunity to connect RATIONAL DMIS with any CAD system that supports I ++.
MODEL |
NCT 454 |
NCT 686 |
NCT 8156 |
Strokes (X Y Z) |
400 x 500 x 400 mm |
600 x 800 x 600 mm |
800 x 1500 x 600 mm |
Measuring accuracy ISO 10360-2:2001/GB/T16857.2-2006 |
MPEE (µm): 2.1 + 3.3L / 1000 | MPEP (µm): 2.2 |
MPEE (µm): 2.1 + 3.3L / 1000 | MPEP (µm): 2.3 |
MPEE (µm): 2.1 + 3.3L / 1000 | MPEP (µm): 2.3 |
Overall size (X Y Z) |
1000 x 1240 x 2240 mm |
1200 x 1650 x 2660 mm |
1400 x 2350 x 2660 mm |
Work envelope (X Y Z) |
525 x 995 x 600 mm |
730 x 1400 x 800 mm |
930 x 2100 x 800 mm |
Weight |
690 kg |
973 kg |
1620 kg |
Part weight |
500 kg |
700 kg |
1000 kg |
